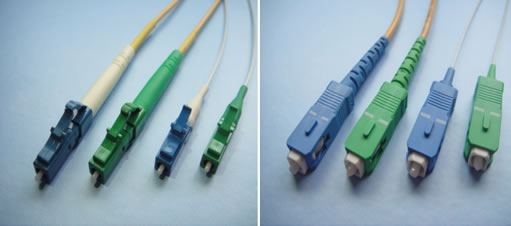

外观规格

特性

   UPC产品符合IEC61755-2-1标准
   APC产品符合IEC61755-2-2标准
   低插入损耗，低反射损耗
   符合RoHS要求
   工作温度:-40℃～+ 85℃
   高标准端面几何参数
   各种规格连接头SC,LC ,FC ,ST等


用途

 光仪器仪表
 光纤测试系统

性能指标

随机对测性能（以下内容引自IEC规范原文)

一、Proposed performance grades for PC polished connectors are given in Table 1 and 2.The performance grade on return lose are for non-angled connectors only.

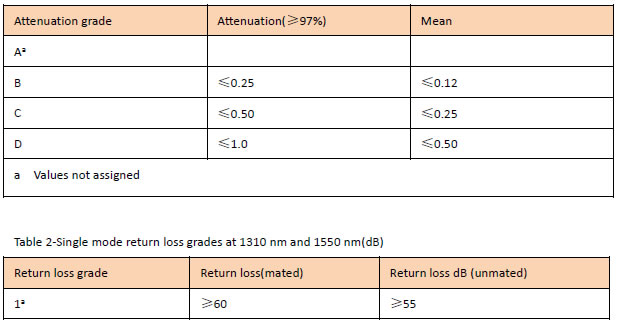

Table 1-Single mode attenuation grades at 1310 nm and 1550nm (dB)

Table 2-Single mode return loss grades at 1310 nm and 1550 nm(dB)

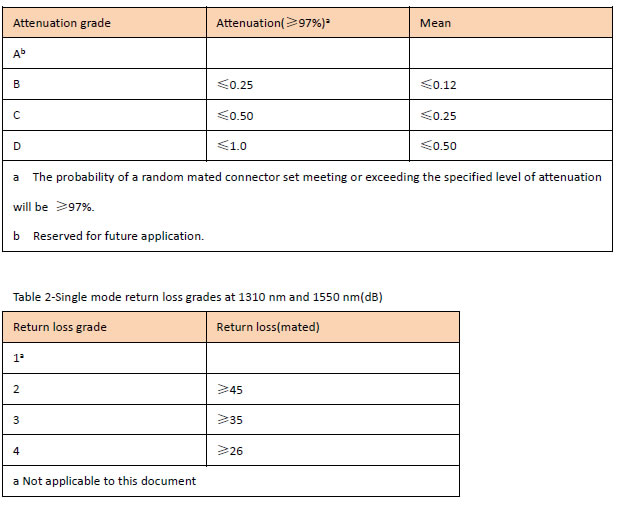

二、Proposed performance grades for APC polished connectors are given in Table 1 and 2.The performance grade on return lose are for non-angled connectors only. Table 1-Single mode attenuation grades at 1310 nm and 1550nm (dB)

Table 2-Single mode return loss grades at 1310 nm and 1550 nm(dB)
